Swingarm Kit - KLX 110 Stock Comp
Swingarm Kit - KLX 110 Stock Comp - Silver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Item Fitment
Item Fitment
Swingarm Kit - KLX 110 Stock Comp - confirmed fit on the following bikes.
Shipping & Taxes
Shipping & Taxes
We pride ourselves on fast shipping on all orders. Orders placed before 5PM EST will ship the same day Monday - Friday (excluding holidays, and the occasional day off for riding).
US Customers - Taxes (if applicable) will be charged at checkout.
International Customers - Duties/Taxes will be paid at the time of delivery (not checkout).
Description
Description

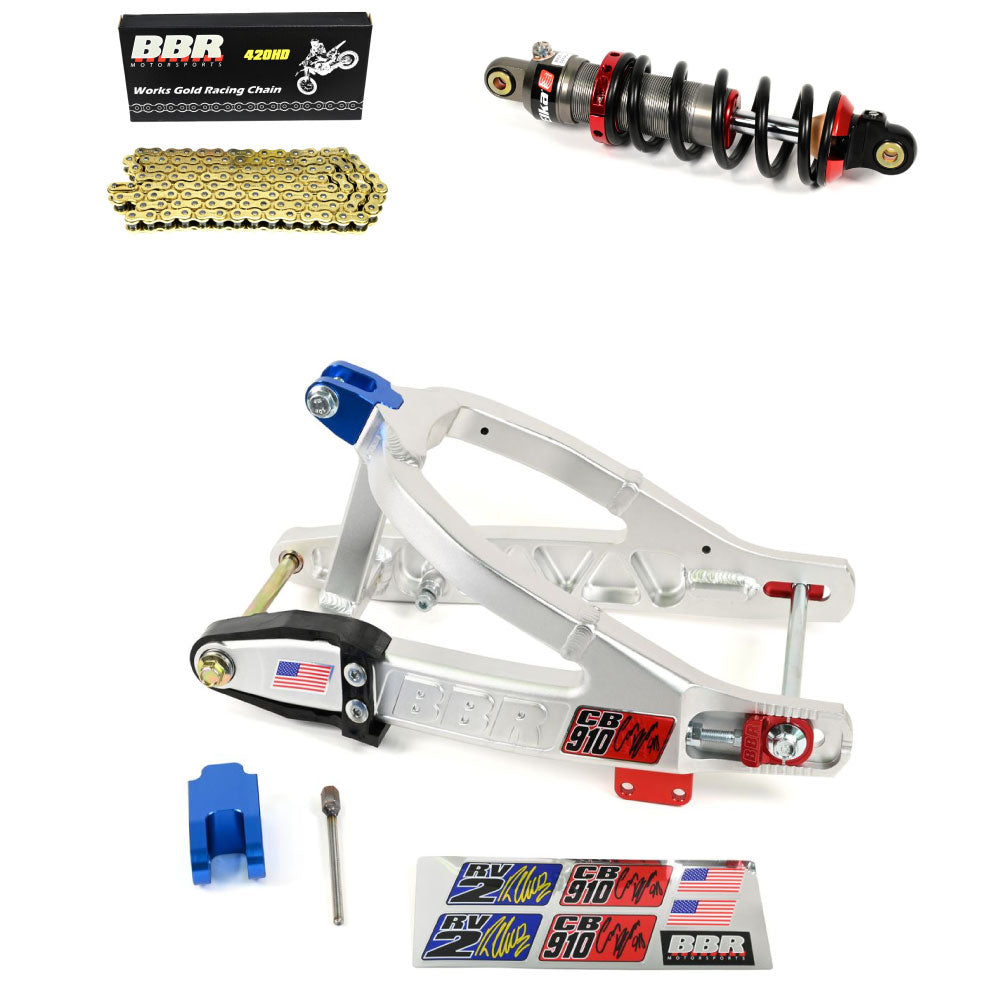

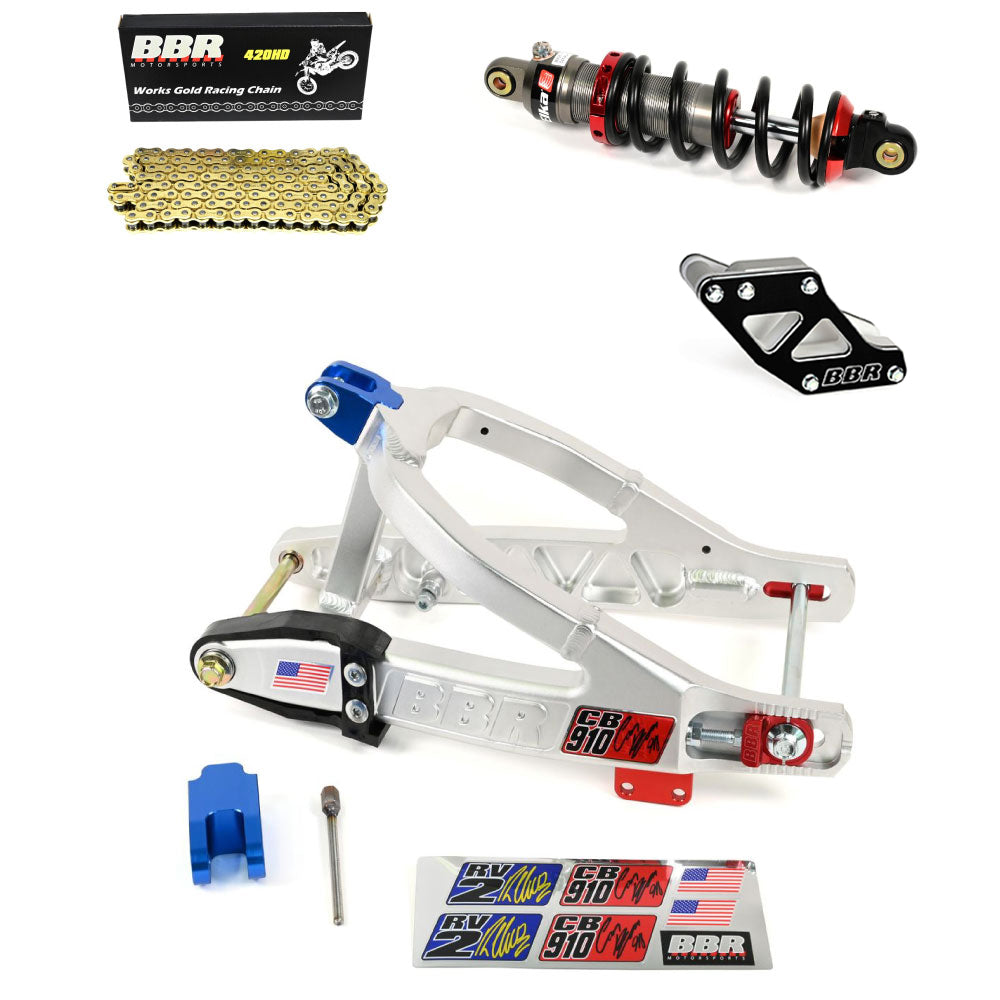

BBR Motorsports Stock Comp Swingarm Kit includes the swingarm, Elka Stage 2 rear shock, and an extended BBR Works Gold chain.
Introducing the all new BBR Stock Comp Signature aluminum swingarm for the KLX110 and KLX110L! We completely started over in designing this new A-frame style swingarm. The sides are forged from 6061 aluminum for super high strength and increased stiffness. These forgings eliminated the 4 main welds used on our old Super Stock swingarms and allowed for a much more precise fit and finish. The axle dropouts were redesigned to be stronger and allow for more chain adjustment. The shock mount is removable giving you the choice between standard ride height and +1" seat height. All Stock Comp Signature swingarms now include a brake stop for disc brake caliper mounts (fits old BBR disc brake or Diamond KX65 caliper mount) or the standard KLX110 brake arm. Finish is bead blasted clear anodized. Includes anodized look chrome signature decals from Ryan Villopoto and Carson Brown.
- Forged 6061 aluminum side spars
- TIG welded and heat treated to T6
- Bead blasted and Bright Dip anodized finish
- Ride height adjustable between standard and +1" (both blocks included)
- Uses BBR CRF/XR50 chain guide on all models
- Adds 1.75" over stock length
- Includes brake rod extender
- Includes chain guide
Elka Stage 2 Rear Shock
BBR worked with Elka Suspension to come up with a high quality, rebuildable, adjustable pitbike shock. The result is their brand new aluminum body Stage 2 playbike shock. A perfect match to our Stock Comp (or older generation Super Stock) swingarms, these Elka shocks feature adjustable rebound damping, adjustable preload, and a giant 16mm shock shaft. We had Elka valve these shocks for aggressive adult riders (and fast kids) and they're sprung for 165-200 lbs. riders.
Custom valving and spring rates are available with a 2 week lead time.
Stock KLX110 (non-L) shock is 255 mm
Stock KLX110L is 272 mm
Elka Stage 2 shock is 272 mm
- Adjustable spring preload
- Adjustable rebound damping
- Light weight hard anodized aluminum body
- Huge 16mm shock shaft
- Low friction internals
- Triple sealing seal head design
- 272 mm in length (approx. 10.7 inches)
- Made in Canada
Our In-House Chain Option. The BBR Works Gold Chain is 120 links. This should be long enough for most minibike applications; including extended swingarm upgrades.
Specs below are for the BBR Works Gold Chain
- Super strong & lightweight design for high performance / racing mini off road & motocross machines
- Uses clip type connnecting link
- Test Rider Carson Brown approved for all seasons
