BBR  |  SKU: 430-KLX-1110

Air Filter Kit - U-Flow / KLX/DRZ110 02-Present

$12490 USD $14695

Item Fitment

Air Filter Kit - U-Flow / KLX/DRZ110 02-Present - confirmed fit on the following bikes.

  • 2002 - Present Kawasaki KLX110
  • 2010 - Present Kawasaki KLX110L
  • 2021 - Present Kawasaki KLX110R
  • 2021 - Present Kawasaki KLX110RL
  • 2003 - Present Suzuki DRZ110

Shipping & Taxes

We pride ourselves on fast shipping on all orders. Orders placed before 5PM EST will ship the same day Monday - Friday (excluding holidays, and the occasional day off for riding).

US Customers - Taxes (if applicable) will be charged at checkout.

International Customers - Duties/Taxes will be paid at the time of delivery (not checkout).

Description

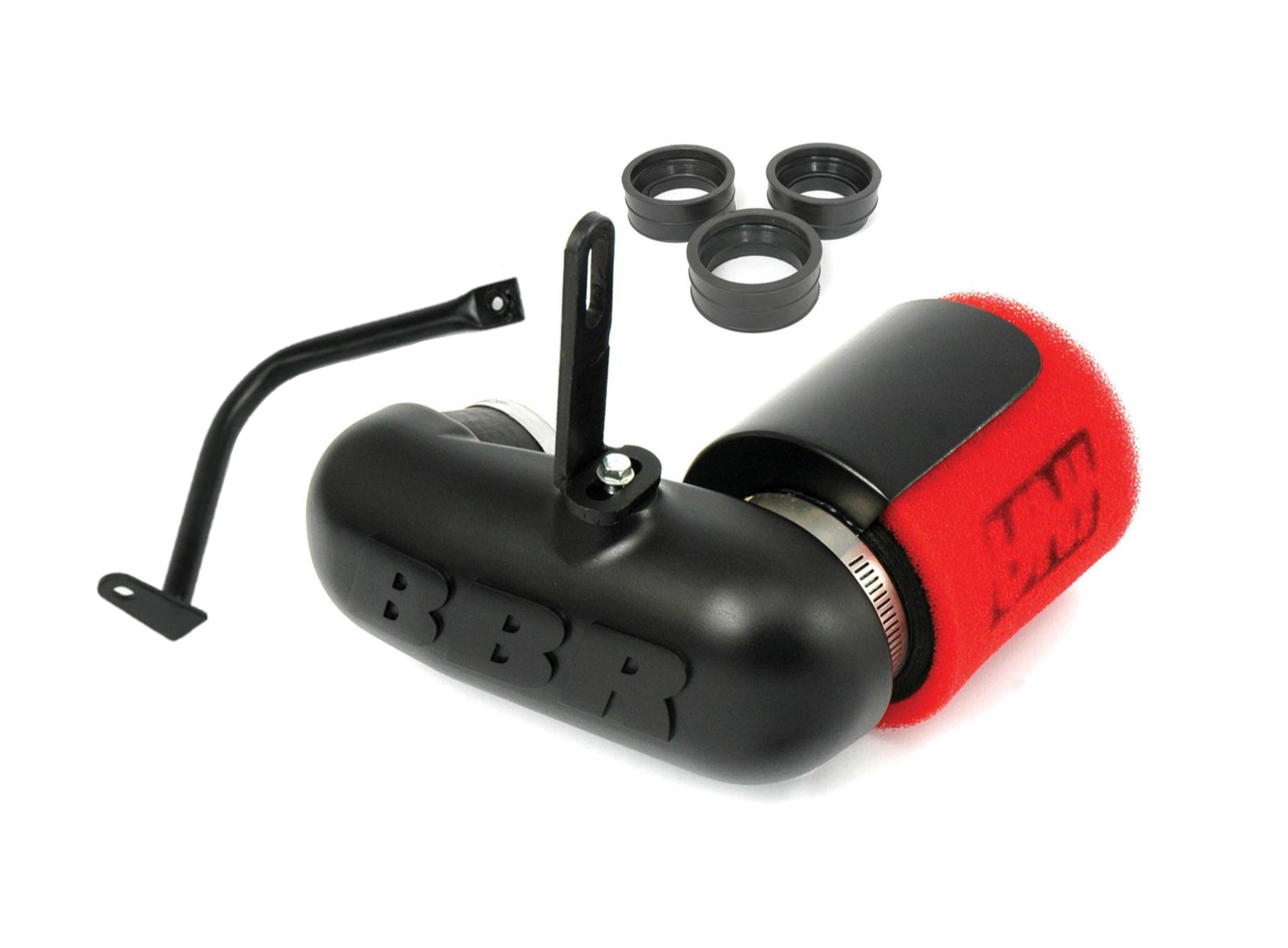

BBR's exclusive U-Flow Air Filter System turns the filter around so it faces backwards, keeping it shielded from dirt and mud. It comes with a high-volume oversized Uni filter maximizing air flow. This innovative upgrade allows the bike to be jetted for optimum performance. The U-Flow delivers a high volume of air to your carburetor resulting in sharper throttle response. Complete kit includes adapters to fit stock KLX/DRZ110 carbs along with the Mikuni VM26 and Keihin PWK/PE28.

Includes Air Box Removal Bracket.


  • Sharper throttle response
  • Shields filter from dirt and debris
  • Maximizes air-flow with high-volume over-sized Uni Filter air filter
  • Allows bike to be jetted for optimum performance

NOTE: For stock frame applications the Air Box Removal Bracket Included in kit should be used for added support of the LH shroud.

**Note** Jetting Specs for U-Flow Air Filter **Note**
*Colder weather requires larger jets. Warmer weather and higher octane require smaller jets.*
92 octane @ sea level (60 degrees)
Stock KLX 110 = OEM Stock Carb and OEM Pipe (95-100 main jet)
Stock KLX 110 = OEM Stock Carb and BBR Pipe (100 -105 main jet)
KLX 110 Stock Carb 143cc Kit = (100-105 main jet)
KLX 110 Stock Carb 143cc Kit and BBR Pipe = (105 and up main jet)
KLX 110 143cc Kit, 26mm Mikuni Carb and BBR Pipe = (180 main jet, 22.5 Pilot)
KLX 110 160cc Kit, 26mm Mikuni Carb and BBR Pipe = (190 main jet, 22.5 Pilot)
KLX 110 160cc+ Kit, 28mm Kiehn Carb and BBR Pipe = (120 main jet, 42 Pilot)


BBR General Jetting Guidelines Chart


Replacement Items

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
B
Brad Goodfriend
Perfect

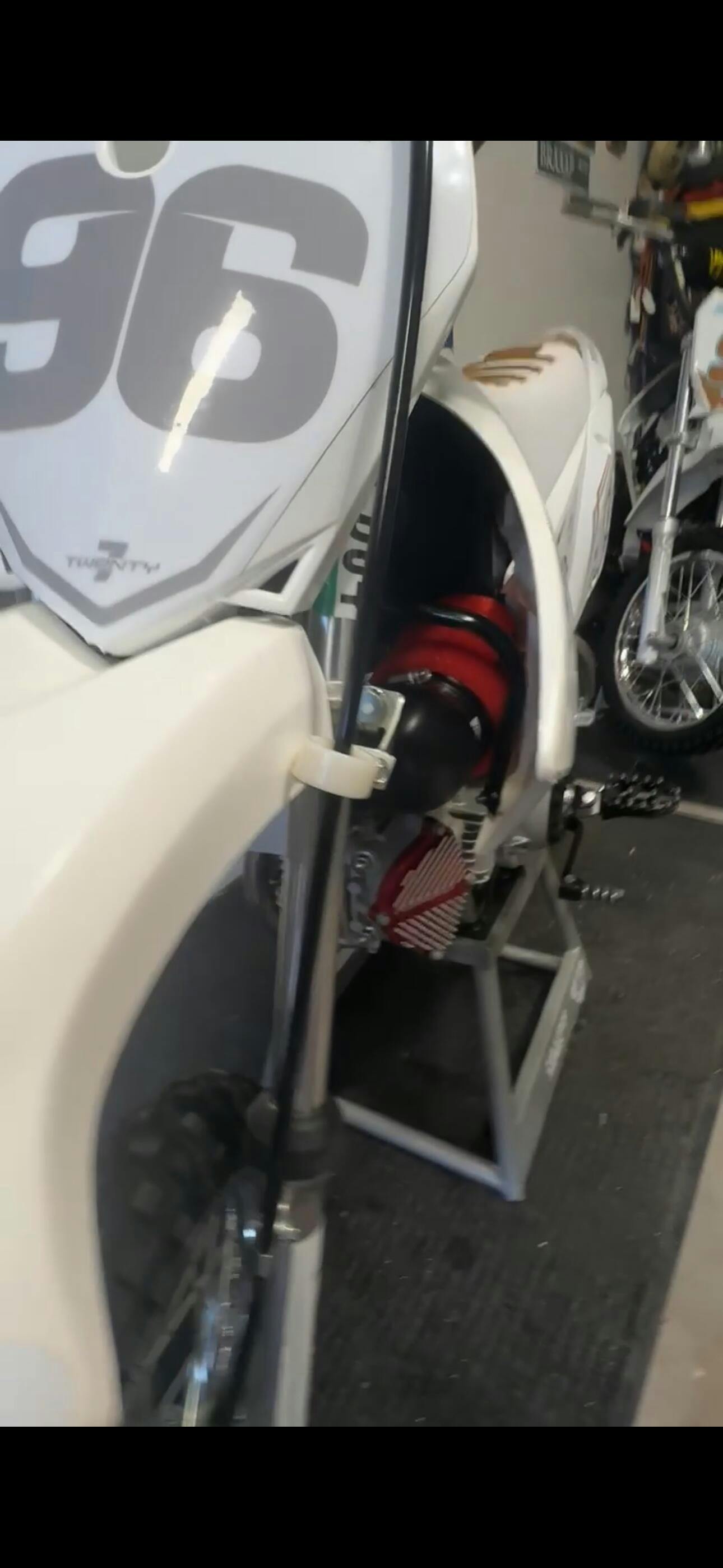

Instal is simple and definitely can feel more power, paired it with a pro circuit exhaust! Worth it! Super sick! 2024 Kawasaki 110L. It comes with the fender piece and everything you need to instal it!

L
Levi Schelhaas
Added good power but difficult to install

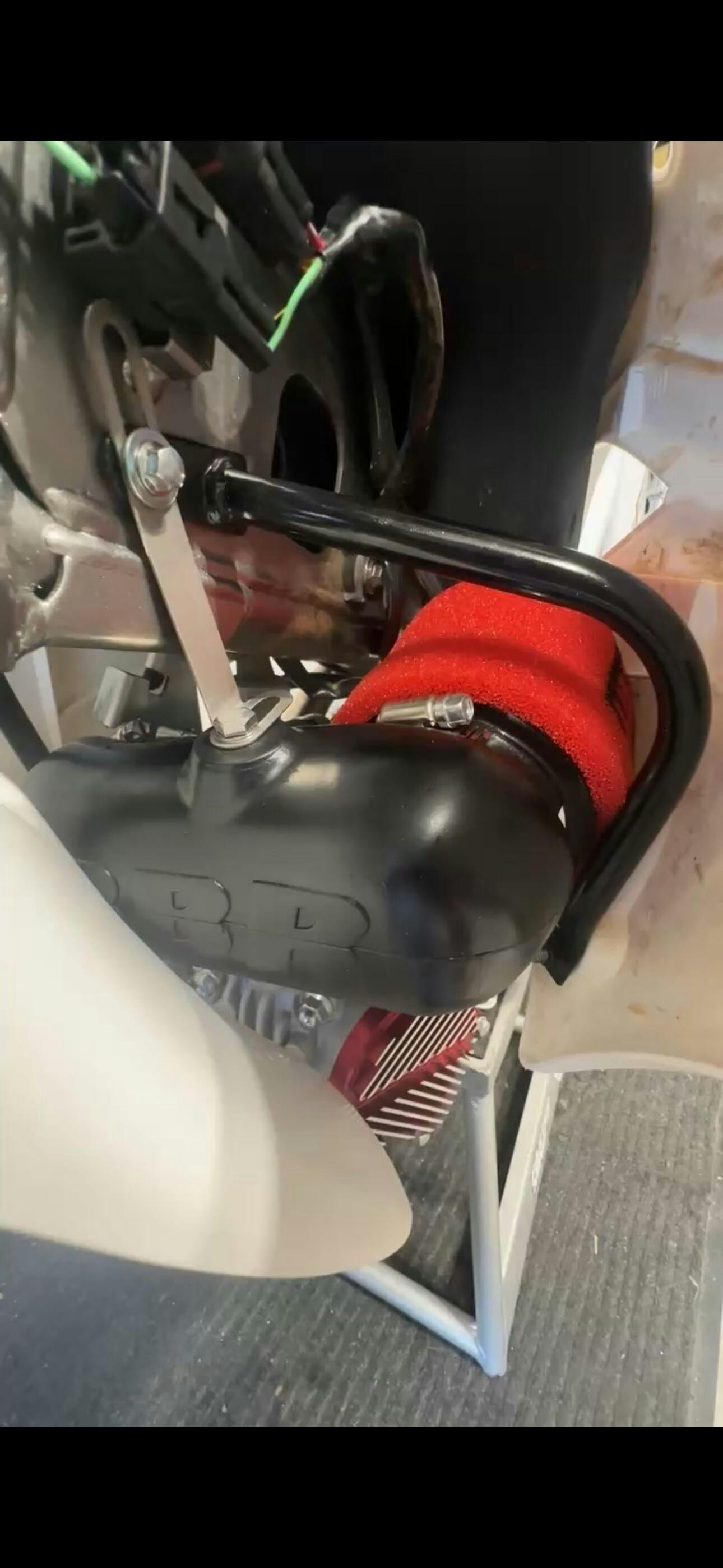

It added some good low and high-end power with the D3 exhaust and 100 main jet. But I had some difficulty installing. it wasn’t that bad installing besides I had to grind down one of the hose clamps thinner it to hold the uflow securely to the carb adapter boot. I’ve had it for about a month and it’s working good hasn’t fallen off or broke (falls off easy if you don’t grind the hose clamp).

P
Peter Newton
The Essentials

Can't build a proper KLX without this Intake. I put these on all my race bikes paired with a big carb and they rip!

M
Michael Burke
= more air flow

02 klx110 with hy compresion piston, from stock airbox jeting went 40 pilot/80main to 38pilot/95main orderd a #98 recomened. Crazy how much upper range you gain

A
Anthony

Percect fit good quality
